RSI GCG Products

RSI Global Communications Group Products including Custom Prototyping

We provide a variety of products including:

RSI-9M-PW Cable Driven Mast

We take pride in our wide selection of quality products. All of the products we offer are from trusted
manufacturers with a proven track record of superior support and craftsmanship.

The RSI-9M-PW is a high quality cable driven 9.0

Meter (29.5 ft.) telescoping mast suitable for use as a

mobile wireless access points, Camera surveillance

site, LMR 2 way radio antenna mast, HF antenna

mast, Mobile signage platform. Load capacity 110lbs.

The mast can be permanently mounted on a small

utility trailer with crank down stabilizers or mounted to

a concrete pad.

It is supplied complete with a 12-VDC Winch, Antenna

mounting plate, 3 Guy cables for tie downs in high

wind conditions and a harden steel locking pin.

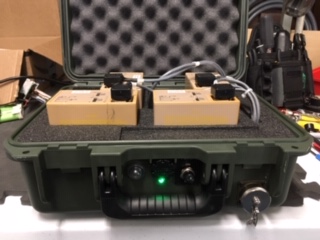

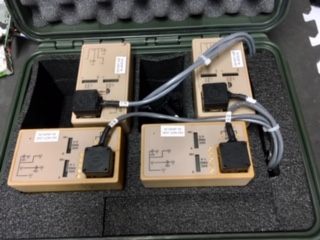

RSI 610 Battery Box

Custom built for military and commercial applications
Can house 6 BB2590-U batteries (not included)
Batteries available at addition cost
Provided with 12 VDC 15 Amp or 12 - 24 VDC 7.5 Amp outputs
On/Off switch and 25 Amp protection

If you have any questions of how we can be of service to you or your organization, please don't hesitate to call us at 210-390-5680.

RSI Global Communications Group
705 Willow Dr.
San Antonio, Texas 78266 USA
+1 210 390-5680
info@rsigcg.com

LNB'S

C-Band, KU-Band and KA-Band

BUC'S

Modems

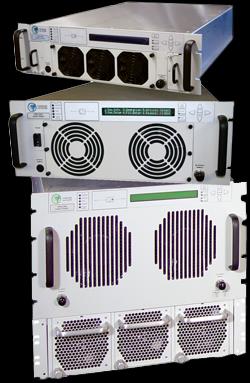

Indoor and Outdoor Solid State Power Amplifiers

Wide range of indoor, rack mountable Solid State Power Amplifiers in 3RU, 4RU, 6RU and 7RU configurations. C-Band, KU-Band, and X- Band
Power levels from 50w to 600w. Various redundancy configurations.

Microwave Equipment for Police, Military and Commercial Applications

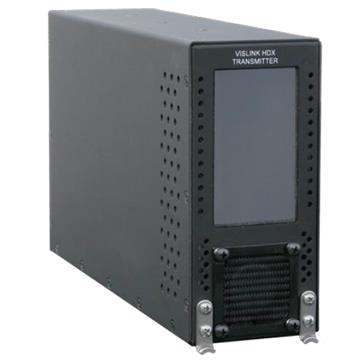

Aircraft/Downlink High Power HD/SD Transmitter

Airborne video surveillance plays a pivotal role in law enforcement, public safety, homeland security, and defence operations. Vislink's Kamelyon family of products meets the challenge for top quality live video in air to ground applications under the most difficult urban, suburban, or rural environments
The Kamelyon HDX-1100 is a fully integrated, high powered microwave transmitter, based on aircraft industry standards for ruggedness, size, and weight. Highly efficient H.264/ MPEG-4 Encoding is a standard feature, and MPEG-2 Encoding is an available option to provide both capabilities.

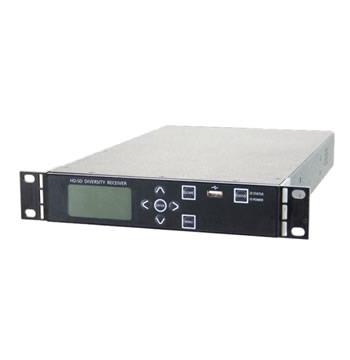

Multi-Format Receiver & Decoder

The Vislink HDR-4000 Receiver is the highest-performing, feature-rich SD/HD diversity receiver available for Central Receive Site (ENG/OB) and Wireless Camera System (WCS) applications. Utilizing Vislink’s core technologies, the HDR-4000 receiver combines leading-edge MaxRC digital signal processing, with highly configurable FPGA circuitry, providing an abundance of user selectable features, all in one streamlined half width 1 RU rack-mount chassis.
It accepts up to six RF signal inputs, with superior sensitivity and adjacent channel performance, producing reliable and comprehensive coverage for any ENG/OB or wireless camera venue. An optional packet switching feature permits additional HDR-4000 receivers to be “joined” together, thereby creating a diversity “cellular” network.

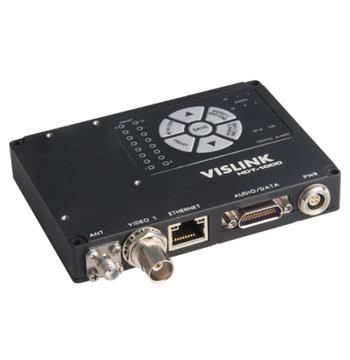

HDT-1000 High Definition Transmitter

HDT-1000 digital transmitter is designed to meet the unique requirements for high-quality video, audio and data transmission in highly demanding tactical environments. Designed for rapid deployment, the rugged and compact HDT-1000 meets the critical needs of the numerous surveillance, emergency/public safety, Homeland Security and Defence Department applications.
As a Software Defined Radio (SDR), the HDT-1000 allows for in-field upgrades without requiring hardware modification. It is capable of multiple digital modulation formats for optimal performance, various encryption schemes to prevent unauthorized intercept and multiple waveforms to support backwards compatibility. These features make the HDT-1000 the only choice with the versatility and power to meet diverse operational needs ranging from mobile to fixed and urban to rural environments.
The HDT-1000 supports IP video streaming which seamlessly bridges the gap between the network infrastructure and remote wireless receivers. The HDT-1000 transmits High Definition (HD) or Standard Definition (SD) signals, supports a variety of video resolution formats and frame rates and provides two output power modes. Sixteen user configurable pre-sets are easily selectable via durable keypad controls for rapid configuration and deployment. The HDT-1000 also supports dual audio inputs - microphone or line level.

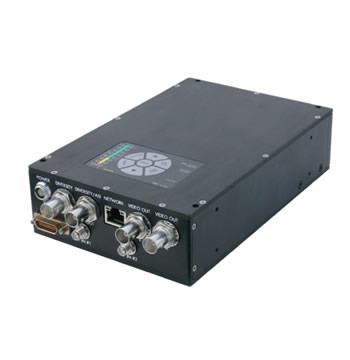

HD/SD Digital Receiver

The Kamelyon HDR-1000 digital receiver delivers high-quality video, audio and data reception in demanding tactical situations. Designed for rapid deployment, the rugged and compact HDT-1000 easily meets tactical requirements for covert and overt surveillance of law enforcement, public safety, homeland security, and defence operations. Kamelyon's software defined surveillance technology allows in-the-field system personality changes and upgrades without requiring hardware modification. The Kamelyon's low power consumption results in extended battery life and its small size make it ideal for concealments and portable use.

The HDR-1000 receives High Definition (HD) video with up to 1080p resolution or Standard Definition (SD) video at 480i and supports a variety of video frame rates. Highly efficient H.264/MPEG-4 decoding provides real performance advantages over legacy MPEG-2 technology, including enhanced video quality and increased signal range. Digital decryption options are available to prevent unauthorized intercepts when security is a must.

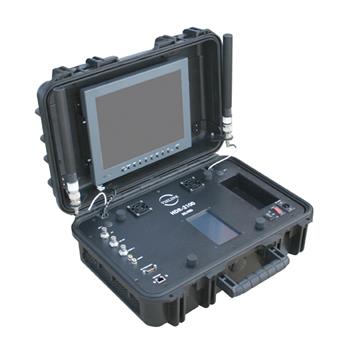

Portable HD/SD Diversity Receiver

The Kamelyon HDR-2100 digital receiver integrates a robust and powerful receiver and high quality daylight readable monitor into a rugged, highly compact and lightweight portable case. The result is a mobile and rapidly deployable complete receiving station that is ideally suited to meet the demanding needs of Surveillance, Public Safety, Homeland Security and Defence Department tactical and emergency applications.
The HDR-2100 allows for in-field upgrades without requiring hardware modification. It provides multiple digital modulation formats for optimal performance, various decryption schemes to prevent unauthorized intercept and multiple waveforms to support backwards compatibility. These features make the HDR-2100 the only choice with the versatility and power to meet diverse operational needs ranging from mobile to fixed and urban to rural environments.
The HDR-2100 supports IP video server output, seamlessly bridging the gap between remote wireless transmitters and the network infrastructure. The HDR-2100 receives High Definition (HD) or Standard Definition (SD) signals and supports a variety of video resolution formats and frame rates, making it highly adaptable to diverse situational needs. Sixteen user-configurable pre-sets are easily selectable via durable keypad controls for rapid configuration and deployment.
